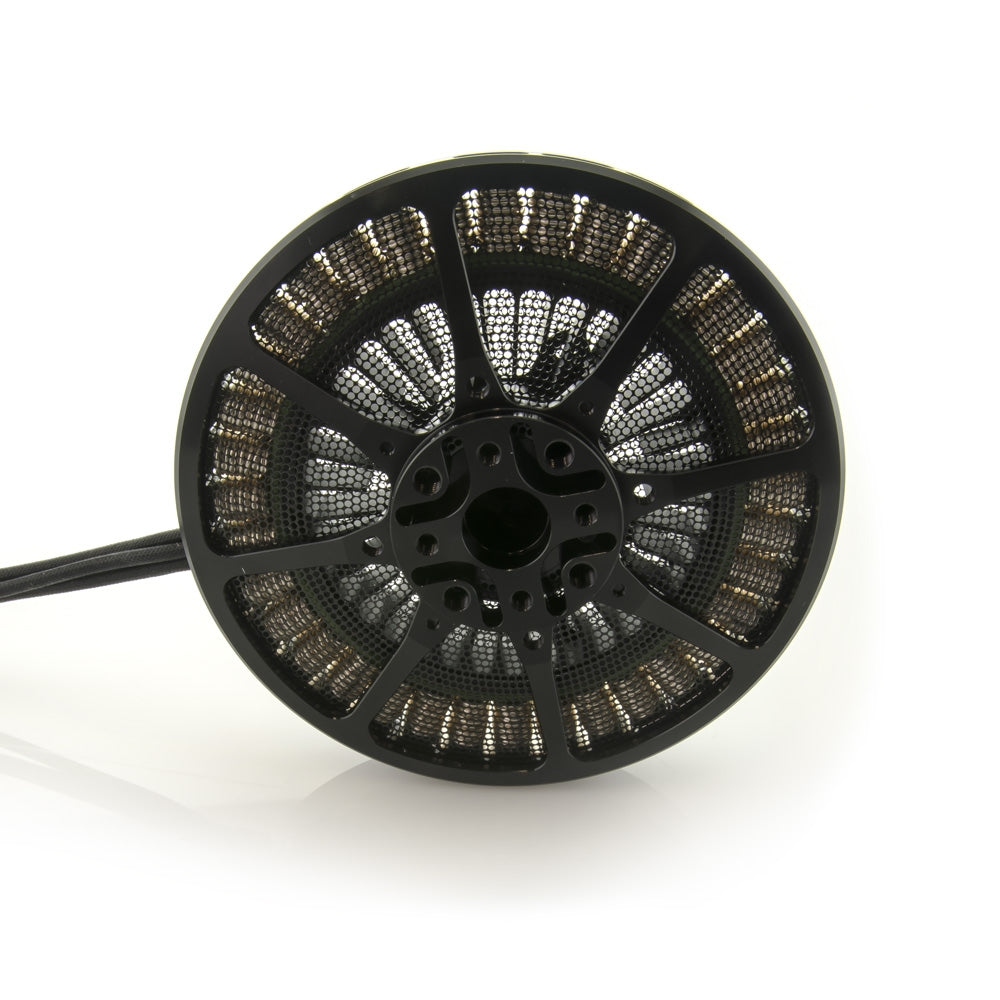

The U8 series motor by Tiger Motors is the ultimate heavy-lift multi-rotor motor. This motor shines in efficiency and quality, giving you the longest flight times possible.
Specifications
- Diameter(mm): 87.1
- Height(mm): 27.05
- Shaft Diameter(mm): 15
- Configuration: 36N42P
- Lead Spec: 90mm
- Ingress Protection Level: IP35
- KV: 150
- Weight(g): 239
- Idle Current(A); @18V (A): 1
- Internal Resistance(mΩ): 85±5
- Propeller: 28"-30"/22"
- Volts(V): 6s Lipo/12s Lipo
- Max Current(A): 31.5/25
- Max Input Power/W: 756/12000
- ESC: AIR 40A, ALPHA 60A LV, FLAME 60A HV, ALPHA 60A HV
- Quadcopter(KG)/28CF: 8
- Hexacopter(KG)/28CF: 12
- (KG)/28F: 16
Includes
- 1x Φ32*10*3MM CPC
- 1x Φ11*14.5 pin
- 4x M3*12mm screws
- 4x M4*12mm screws
