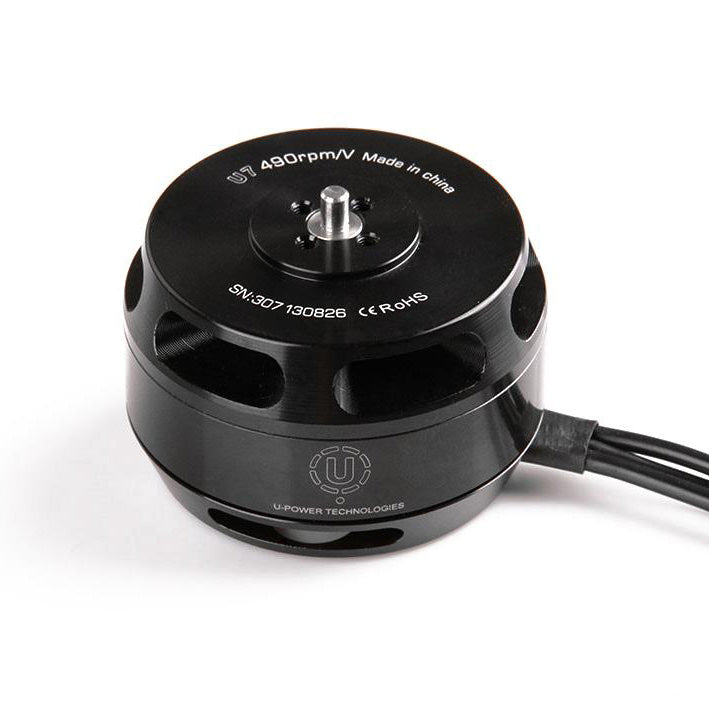

Tiger Motor U-Power series motors feature the best in quality, power, performance and efficiency.
Specifications:
KV................................................................................................................490
Configu-ration....................................................................................12N14P
Configu-ration....................................................................................12N14P
Shaft Diameter........................................................................................4mm
Motor Dimension(Dia.*Len)...............................................Φ60.7×39.5mm
Weight(g)..................................................................................................258g
ldle current(10)@10v(A)..........................................................................1.1A
No.of Cells(Lipo)......................................................................................3-8S
Max Continuous current(A)180S.............................................................44A
Max Continuous Power(W)180S.......................................................1300W
Max. efficiency current.............................................................(10-25A)>81%
internal resistance..................................................................................21mO
internal resistance..................................................................................21mO
