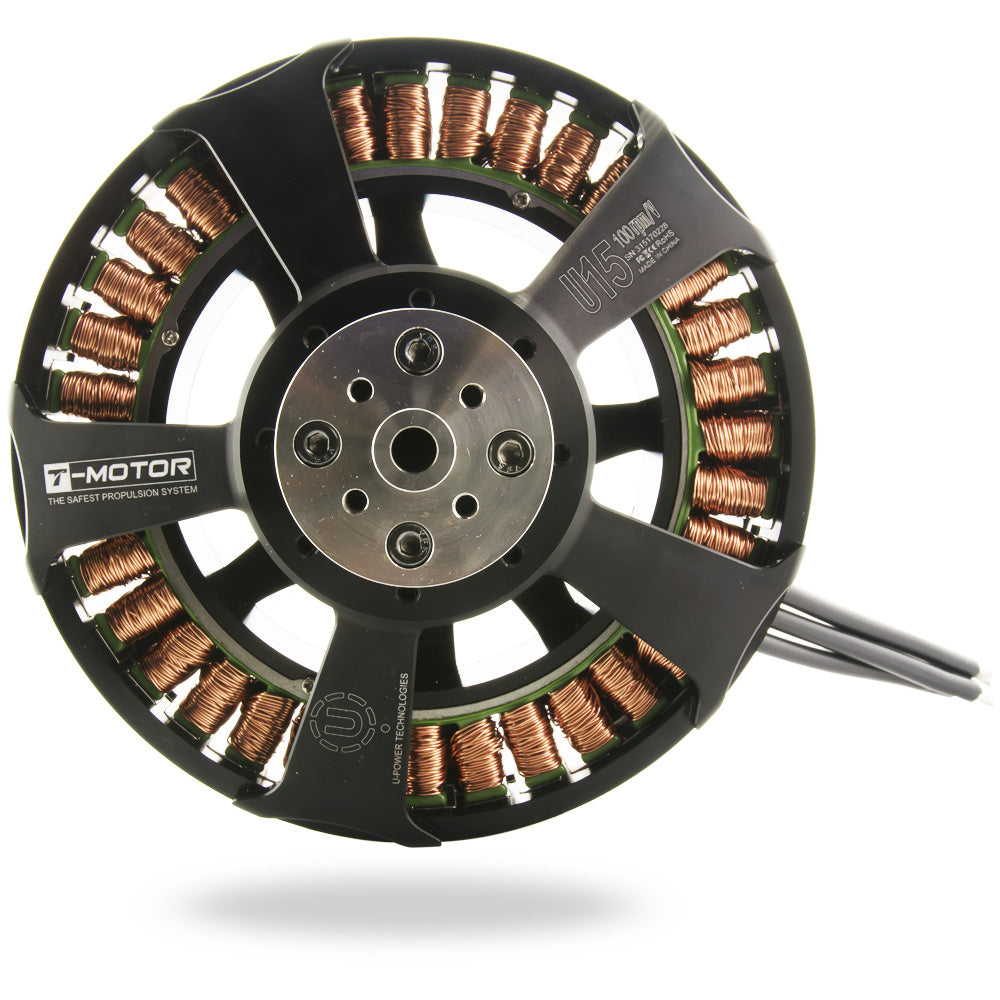

The U15 series motor by Tiger Motors is the ultimate heavy-lift multi-rotor motor. This motor shines in efficiency and quality, giving you the longest flight times possible. The motor features a custom weather-sealed housing, enabling your aircraft to fly even in poor weather conditions.
This motor is designed for large scale multi-rotor platforms. If you are looking to lift DSLR sized gear, the U15 is recommended to fly with.
Specifications
| Test time | Test voltage | 50V | |||
| Motor | U15 | KV | 100KV | ||
| Propeller | 40" PROP | Motor temperature | 73° | ||
| ESC | 350A | Invironment temperature | 20.4° | ||
| Throttle | Thrust( KG) | Current(A) | RPM | Power | Efferts |
| 50% | 9 | 19.1 | 1811 | 955 | 9.42 |
| 55% | 12.1 | 28.3 | 2066 | 1415 | 8.55 |
| 60% | 16.7 | 44.9 | 2405 | 2245 | 7.44 |
| 65% | 20.1 | 60.8 | 2642 | 3040 | 6.61 |
| 75% | 27.9 | 103.8 | 3094 | 5190 | 5.38 |
| 85% | 35 | 151 | 3307 | 7550 | 4.64 |
| 100% | 36.4 | 157 | 3452 | 7850 | 4.64 |
Includes
- 1x U15 100kv U-Power Professional Motor
