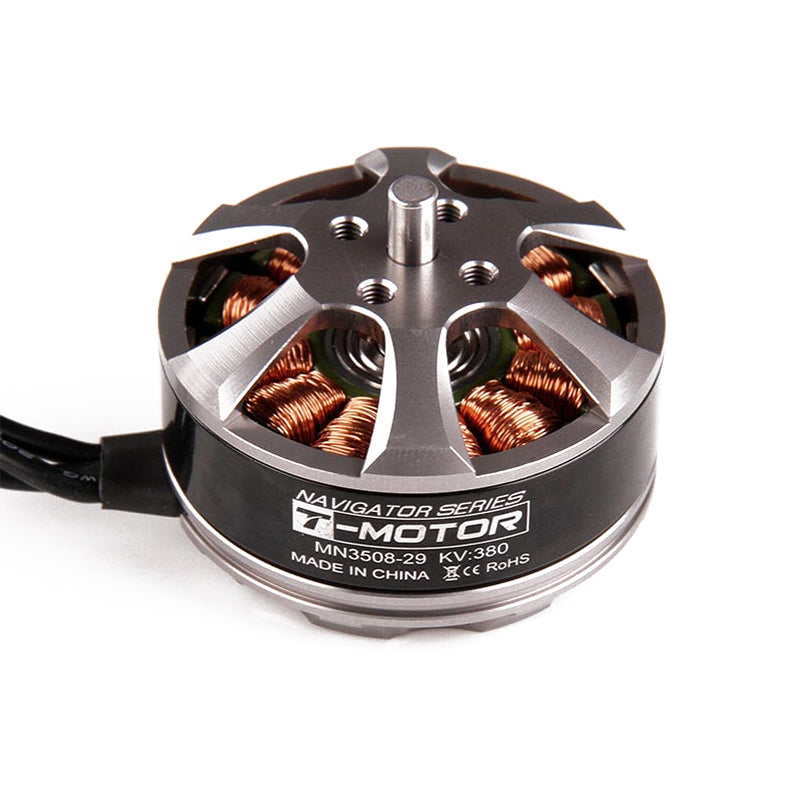

Designed specifically for multi-rotors, the Navigator Series from Tiger Motors includes some of the best multi-rotor motors available today.
The Multi-hole design allows almost any type of prop to be mounted to the motor.
Specifications:
KV...............................................................................................................700
Configuration..................................................................................12N14P
Stator Diameter..................................................................................35mm
Stator Length........................................................................................8mm
Shaft Diameter.....................................................................................4mm
Motor Dimensions(Dia.*Len).........................................Φ41.8×26.5mm
Weight (g)................................................................................................82g
ldle current(10)@10v(A).......................................................................0.5A
No.of Cells(Lipo)..................................................................................3-4S
Max Continuous current(A)180S.........................................................23A
Max Continuous Power(W)180S.....................................................510W
Max. efficiency current..............................................................(3-9A)>80%
internal resistance.............................................................................72mO
internal resistance.............................................................................72mO
