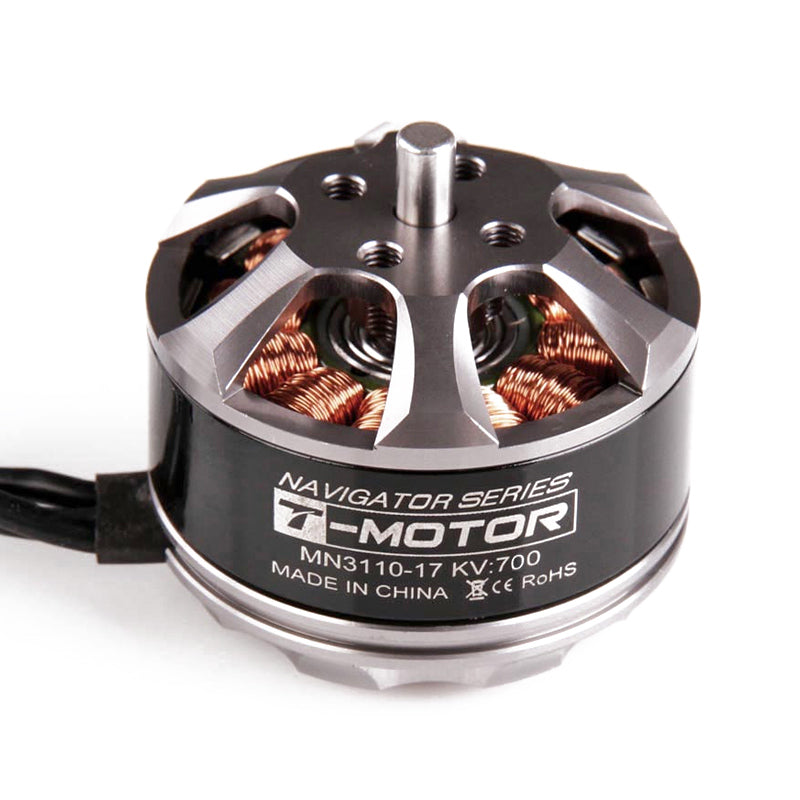

Designed specifically for multi-rotors, the Navigator Series from Tiger Motors includes some of the best multi-rotor motors available today.
The Multi-hole design allow almost any type of prop to be mounted to the motor.
Specifications:
KV..............................................................................................................700
Configuration.................................................................................12N14P
Stator Diameter..................................................................................31mm
Stator Length......................................................................................10mm
Shaft Diameter.....................................................................................4mm
Motor Dimension(Dia.*Len)............................................Φ37.7×28.5mm
Weight(g)..................................................................................................80g
ldle current(10)@10v(A).......................................................................0.3A
No.of Cells(Lipo)...................................................................................3-6S
Max Continuous current(A)180S.........................................................21A
Max Continuous Power(W)180S......................................................466W
Max. efficiency current............................................................(3-10A)>80%
internal resistance.............................................................................92mO
internal resistance.............................................................................92mO
