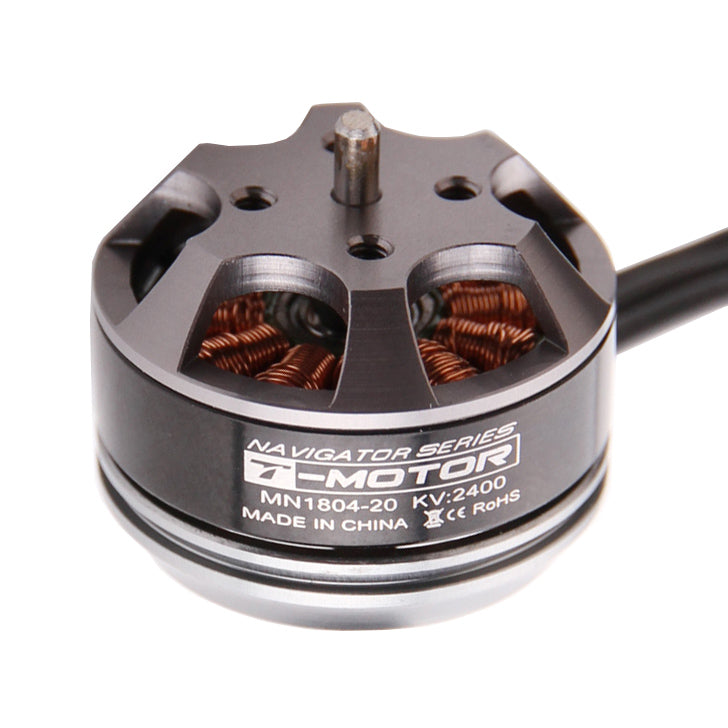

Designed specifically for multi-rotors, the Navigator Series from Tiger Motors includes some of the best multi-rotor motors available today.
The Multi-hole design allow almost any type of prop to be mounted to the motor.
Specifications:
KV: 2400
Configu ration: 12N14P
Stator Diameter: 18mm
Stator Length: 4mm
Shaft Diameter: 4mm
Motor Dimensions(Dia.*Len): Φ27.5×26.5mm
Weight (g): 16g
ldle current(10)@10v(A): 10A
No.of Cells(Lipo): 2-3S
Max Continuous current(A)180S: 10A
Max Continuous Power(W)180S: 110W
Max. efficiency current.: (2-5A)>81%
internal resistance: 230mO
Configu ration: 12N14P
Stator Diameter: 18mm
Stator Length: 4mm
Shaft Diameter: 4mm
Motor Dimensions(Dia.*Len): Φ27.5×26.5mm
Weight (g): 16g
ldle current(10)@10v(A): 10A
No.of Cells(Lipo): 2-3S
Max Continuous current(A)180S: 10A
Max Continuous Power(W)180S: 110W
Max. efficiency current.: (2-5A)>81%
internal resistance: 230mO
