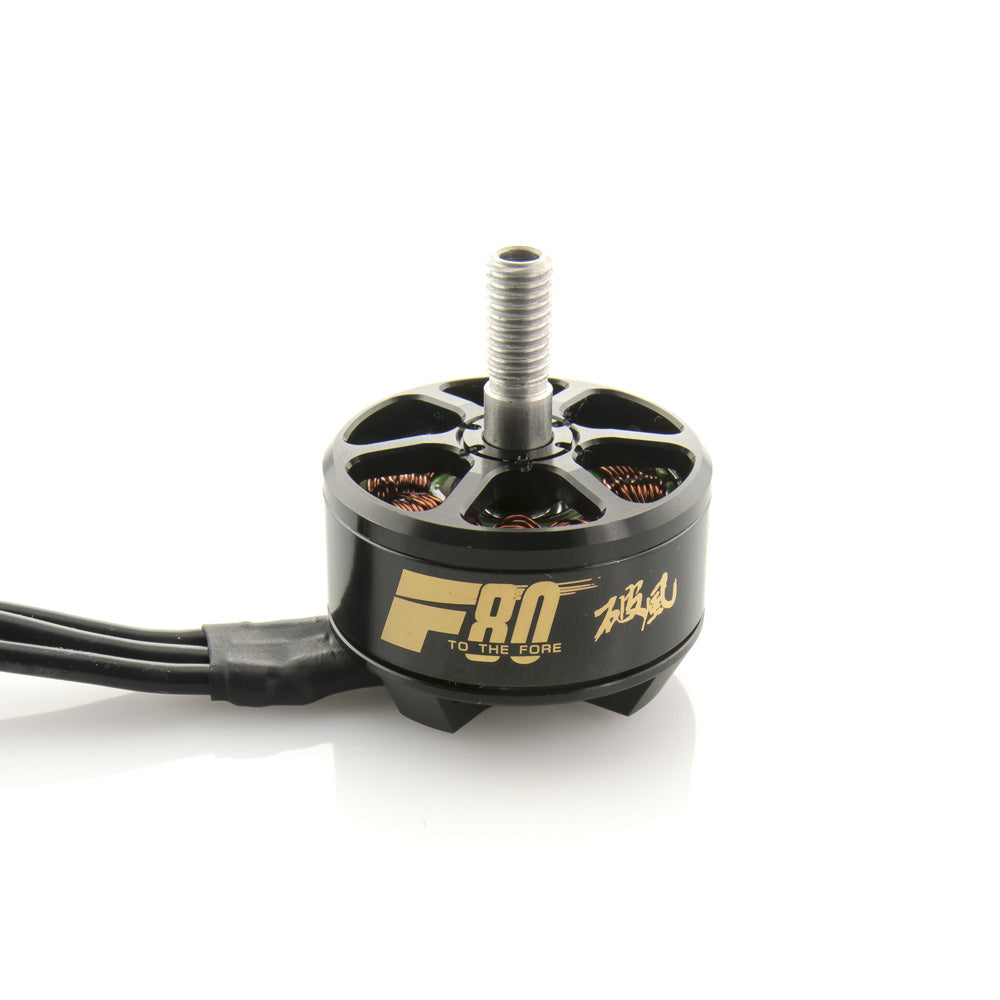

The F80 2500Kv FPV Series Motor has been design and built specifically for FPV Racing. Using a steel shaft and a unique structural design to prevent bending and deformation on crashes, these motors are built to take a punch. They are very quick and have fast response. Also uses a creative way of heat dissipation, reducing 15% more heat than other motors. The F-Series FPV motors by Tiger Motors are some of the best FPV racing motors around.
Includes:
- F80 2500Kv Brushless Motors
- 1x Locking Nuts
- 4x Socket Head Screws
Specifications
| KV2500 | |||
| Internal Resistance | 21m? | Configuration | 12N14P |
| Shaft Diameter | 4mm | Motor Dimensions(Dia.*Len) | 28..5mm8*33 |
| Stator Diameter | 24mm | Stator Height | 8mm |
| AWG | 18# | Cable Length | 60mm |
| Weight Including Cables (g) | 43.1g | Weight Excluding Cables (g) | 40.7g |
| No.of Cells(Lipo) | 2-4S | Idle Current@10v(A) | 1.9A |
