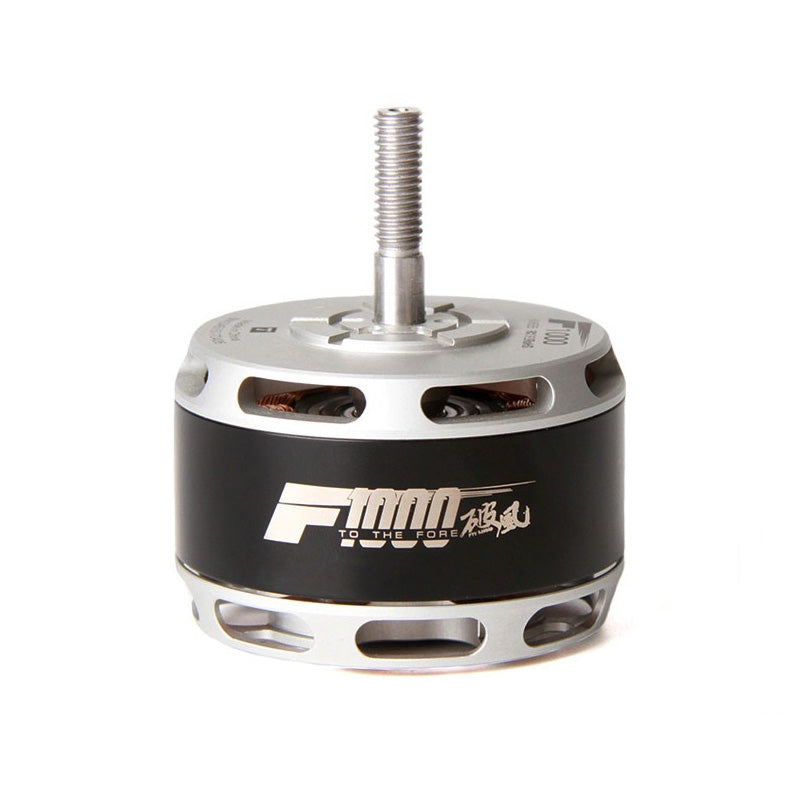

T-Motor Newest F1000 KV545 Smooth&Steady Impact Resistant Stable For Big FPV Racing Drones Motor.
Specification
- Configuration: 12N14P
- Shaft Diameter: IN: 8mm, OUT: 6mm
- Bearing: Imported 698ZZ
- Magnet Level: 150°C high temperature resistance: Level E
- Silicon Cable: 14AWG*750mm
- Copper Wire: 220°C high temperature resistance: Level C
- Coil Insulation Test: 500V
- Motor Dynamic Balance Standard: <10Mg
- IP: 55
- KV: 545
- Rated Voltage: 6-8S
- ldle current @10v(A): 2.5A
- ESC Recommedation: FLAME 80A
- Peak Current(A): 75A
- Prop Recommendation: 15-16
- Max. Power(W): 2400W
- Motor Weight (g): 265g/315g (Incl. cable)
- Internal Resistance (Inc. Cable): 30mΩ
- Package Weight (g): 420g
Includes
- 1x F1000 545Kv Motor
- 1x Plate
- 1x M6 Prop Nut
- 4x M4*8mm Mounting Screw
