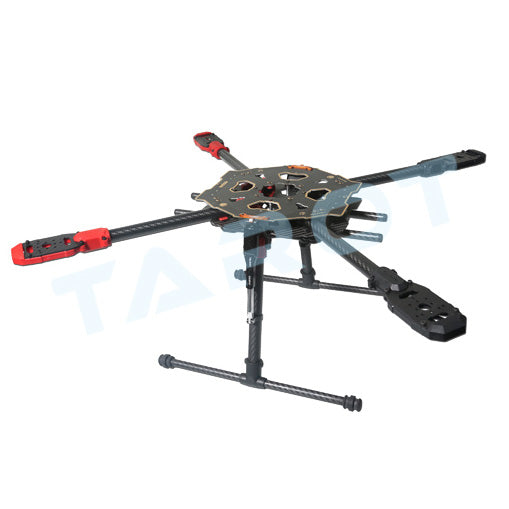

This is the new Tarot 650 Sport Carbon Fiber Quadcopter with retractable landing gear. (TL65S01). The frame and carbon fiber tubes feature full 3k woven pure carbon fiber. This heavy-lift quadcopter is capable of supporting up to 17" propellers and can lift even full gimbal and small/medium sized SLR camera. The TL8X002 retractable landing gear allows you to pull the landing gear up during flight giving you a full 360 degrees for you camera below. No landing gear in the shot! The building process is simple and the parts are precise making the Tarot 650 Sport a favorite for many aerial photographers.
Tarot holds 4 individual patents on this model, leading the industry in innovations.
Patent number: 2014101408249, 2014201726798, 2014300815963, 2014300815982
- TORAY 3K carbon fiber plate and 3K hollow pure carbon fiber tube (not 3K glassy carbon tube), CNC processed.
- Wheelbase Diameter: 600MM
- Rotor Size: 12-15 inch T series carbon fiber propeller
- Brushless motor: 4S / 620KV4006 brushless motor TL68P02
- 4114 / 320KV multi-axis brushless motor / Orange TL100B08
- 6S 380KV 4008 multi-rotor disc brushless motor TL68P07
- Battery Specifications: 10-15C, 14.8V -22.2V, 4000-5000MHA
- Brushless ESC: 20-30A
- Especially good for monitoring, remote sensing, survey and mapping, aerial investigation, fire observation, life exploration, cable patrol, and farm monitoring.
Specifications:
- Recommended configuration: gopro configuration
- 180-250W motor+20A ESC+4S 5000 battery+10-12 inches propeller
- General configuration: EVIL/ SLR-LIKE configuration
- 300-400W motor+30A ESC+4S 5000-10000 battery+12-14 inches propeller
- Extreme configuration: DSLR configuration
- 400W above motor+40A ESC+6S 5000-10000 battery+14-17 inches propeller
