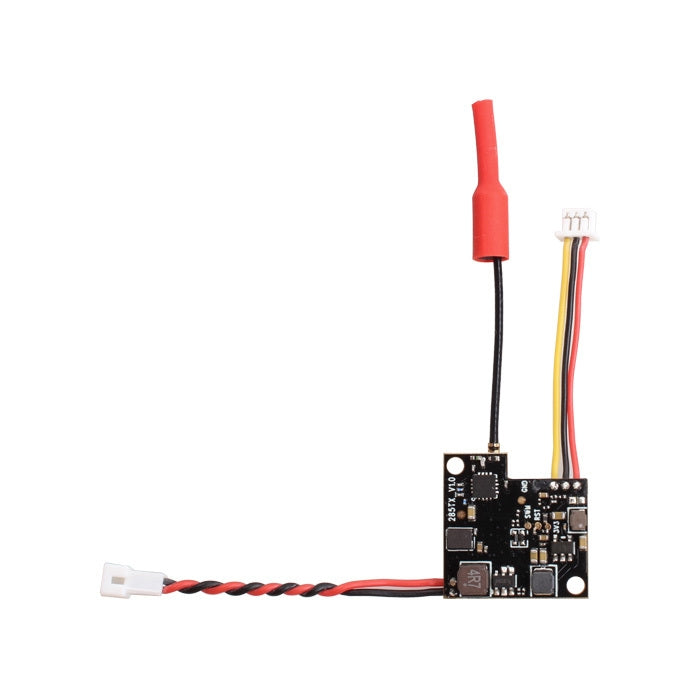

The Runcam TX200 has been specifically designed to attach directly to the Runcam Swift Micro and Swift Micro 2. This is a micro sized FPV Video transmitter on the 5.8GHz band.
Specifications
| Frequency Channel | 5.8G 6 Band 48CH |
| Output Power | 25mW / 200mW |
| Voltage in | 1S 3.5-5.5V |
| Working Current | 5V@ 150-400mA |
| Voltage out | 5V@max 250mA |
| Video Input Impedance | 75 Ohm |
| Antenna | 5.8G 2dB Omni antenna |
| PCB Size | 19mm*19mm |
| Weight | 2.5g (with antenna) |
| Channel | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| 1 Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| 2 Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| 3 Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| 4 Airwave | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| 5 Race Band | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| 6 Low Race | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
* The orange highlighted channels below have been locked from use.
